Water management systems demand reliable, efficient, and easy-to-operate flow control solutions. From municipal water supply networks to industrial water treatment plants, valves play a critical role in ensuring smooth and safe water flow. Among the most widely used solutions today is the motorized wafer butterfly valve with electric actuator, specially designed for modern water applications.
This type of valve combines compact design with automatic operation, making it ideal for systems where manual operation is difficult or where precise control is required.
What Is a Motorized Wafer Butterfly Valve?

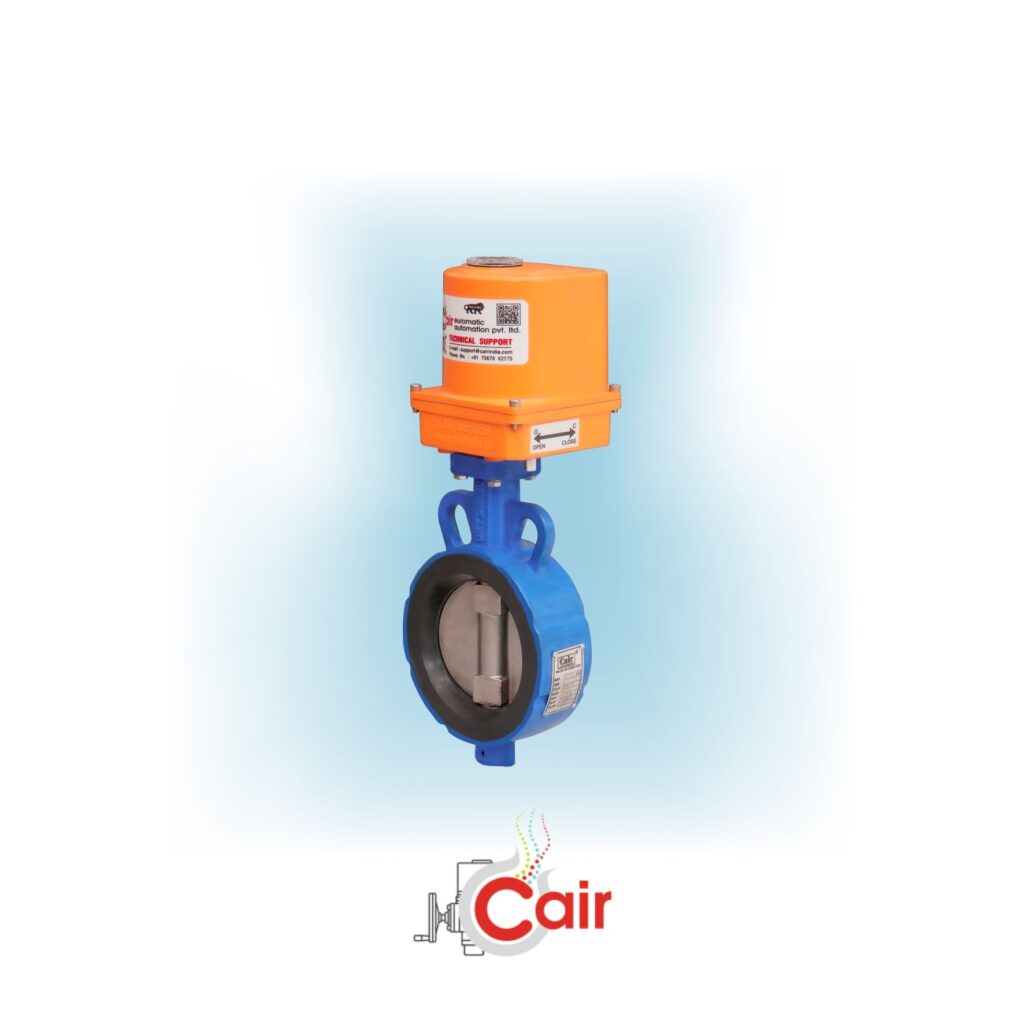

A motorized wafer butterfly valve is a flow control device that uses a rotating disc to regulate water flow. The valve is operated by an electric actuator, which opens or closes the valve automatically using an electrical signal. The wafer-type body fits easily between pipeline flanges, saving space and simplifying installation.
For water systems, this valve is preferred because it offers:
- Smooth on–off operation
- Accurate flow regulation
- Low pressure drop
- Reliable sealing performance
Importance of Butterfly Valves in Water Systems
Water pipelines require valves that can handle continuous operation without leakage or frequent maintenance. Motorized wafer butterfly valves are widely used because they offer long service life and consistent performance in water environments.
These valves help manage:
- Water distribution
- Pressure balancing
- Flow regulation
- Emergency shut-off
With increasing automation in water infrastructure, electric actuator-operated valves have become a standard choice.
Used for On–Off and Flow Control in Water Pipelines
One of the primary uses of a motorized wafer butterfly valve is on–off and flow control in water pipelines. Whether it is a main supply line or a secondary distribution network, the valve allows operators to start, stop, or regulate water flow efficiently.
The electric actuator ensures:
- Fast response time
- Smooth valve movement
- Consistent operation without manual effort
This makes the valve ideal for both normal operation and emergency conditions.
Key Water Applications
1. Municipal Water Supply
Motorized butterfly valves are widely used in city water supply systems to control water flow across long pipeline networks. Their automatic operation reduces manpower requirements and improves system reliability.
2. Water Treatment Plants
In water treatment facilities, precise flow control is essential. These valves help regulate water at different treatment stages such as filtration, sedimentation, and distribution.
3. Pumping Stations
Pumping stations rely on automated valves to manage water flow efficiently. Electric actuator-operated butterfly valves help reduce water hammer and protect pumps from damage.
4. Irrigation Systems
Large irrigation networks require valves that can operate remotely and reliably. Motorized wafer butterfly valves ensure uniform water distribution across agricultural fields.
5. Industrial Water Lines
Industries use water for cooling, processing, and cleaning. These valves provide dependable control in industrial water circulation systems.
Advantages of Using Motorized Butterfly Valves for Water
Compact and Space-Saving Design
The wafer-type construction requires less space compared to other valve types, making it suitable for tight installations.
Automatic Operation
Electric actuators eliminate the need for manual operation, improving efficiency and safety in water systems.
Low Maintenance
Fewer moving parts and durable materials result in reduced maintenance and lower operating costs.
Leak-Free Performance
High-quality sealing ensures tight shut-off, preventing water loss and system inefficiencies.
Energy Efficient
The actuator consumes power only during opening or closing, making it an energy-efficient solution.
Materials Suitable for Water Applications
Motorized wafer butterfly valves for water are manufactured using materials that resist corrosion and wear, such as:
- Cast Iron (CI)
- Ductile Iron (DI)
- Stainless Steel (for treated or aggressive water)
Seat materials like EPDM or Nitrile are commonly used because they are safe for water applications and provide excellent sealing.
Working Principle Explained Simply
The working of a motorized butterfly valve is straightforward:
- The electric actuator receives a signal.
- The actuator rotates the valve disc by 90 degrees.
- When the disc is parallel to the flow, the valve is open.
- When the disc is perpendicular, the valve is closed.
This simple mechanism ensures quick and accurate flow control in water pipelines.
Why Automation Matters in Water Management
Modern water systems are moving towards automation to improve efficiency and reduce water loss. Motorized butterfly valves support automation by allowing:
- Remote operation
- Integration with control panels
- Reduced human error
- Better system monitoring
This is especially important in large water supply and treatment projects.
Installation and Maintenance Benefits
Installing a wafer-type butterfly valve is easy because it fits directly between flanges without additional support. Maintenance is minimal, and routine inspection is usually sufficient to ensure long-term performance.
For water applications, this means:
- Reduced downtime
- Lower maintenance cost
- Improved system reliability
Choosing the Right Valve for Water Use
When selecting a motorized wafer butterfly valve for water applications, consider:
- Pipeline size and pressure rating
- Type of water (raw, treated, or industrial)
- Operating temperature
- Actuator voltage and control requirements
Choosing the right valve ensures safe operation and long service life.
Trusted Choice for Water Infrastructure
Due to their durability, efficiency, and ease of operation, motorized wafer butterfly valves are a trusted choice for water infrastructure projects across India. They meet the growing demand for automated, reliable, and cost-effective water flow control solutions.
Conclusion
A motorized wafer butterfly valve with electric actuator is an essential component in modern water systems. Designed for on–off and flow control in water pipelines, it offers smooth operation, compact design, and dependable performance. From municipal water supply to industrial water lines, these valves help ensure efficient and controlled water movement.
For anyone looking to improve water management systems, investing in high-quality motorized butterfly valves is a smart and future-ready decision.
